Infrastructure
Our Manufacturing Infrastructure
State-of-the-art facilities and advanced machinery ensuring precision, quality, and efficiency in every fastener we manufacture.

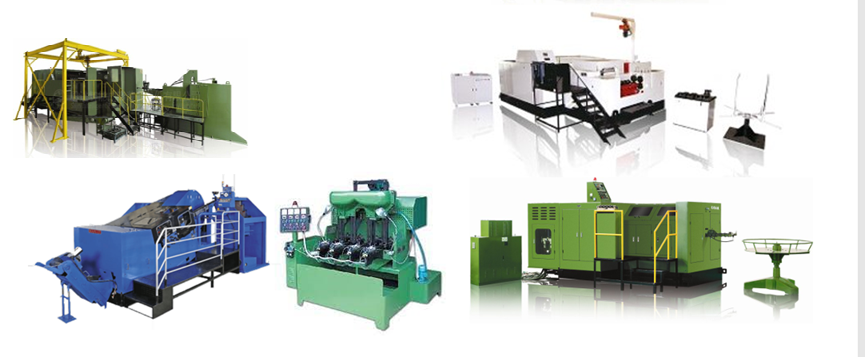

Manufacturing Facilities
- 4 Station Bolt Formers for precision manufacturing
- Advanced Thread Rolling Machines
- 6 Station Nut Formers with high efficiency
- 4 Spindle Tapping Machines
- Header & Trimmer Machines
- Circular Rolling Machines
- Nylon Crimping Machine
- Complete Heat Treatment Facility

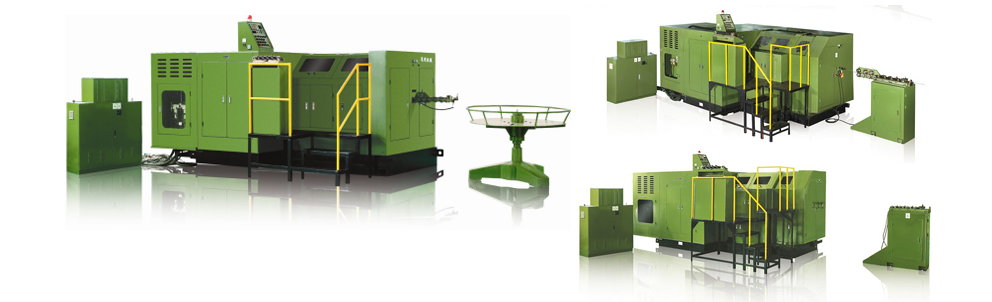

Bolt Former Machines
High-precision bolt forming equipment capable of producing various sizes with exceptional accuracy and speed.
| Make | Model | Product Range | Shank Length (mm) | Capacity (Nos./Min) |
|---|---|---|---|---|
| SIJIN-CHINA | 84S | M4-M8 | 15-77 | 120-200 |
| SIJIN-CHINA | 134L | M10-M12 | 25-152 | 75-120 |
| SIJIN-CHINA | 164S | M14-M16 | 20-152 | 70-110 |
| NATIONAL | 243S | M18-M24 | 60-200 | 40-50 |
Thread Rolling Machines
Advanced thread rolling technology from Taiwan ensuring superior thread quality and strength.
| Make | Model | Product Range | Capacity (Nos./Min) |
|---|---|---|---|
| CHARNG GUEY TAIWAN |
253H | M4-M8 | 240 |
| CHARNG GUEY TAIWAN |
406H | M10-M12 | 140 |
| CHARNG GUEY TAIWAN |
606H | M14-M18 | 95 |

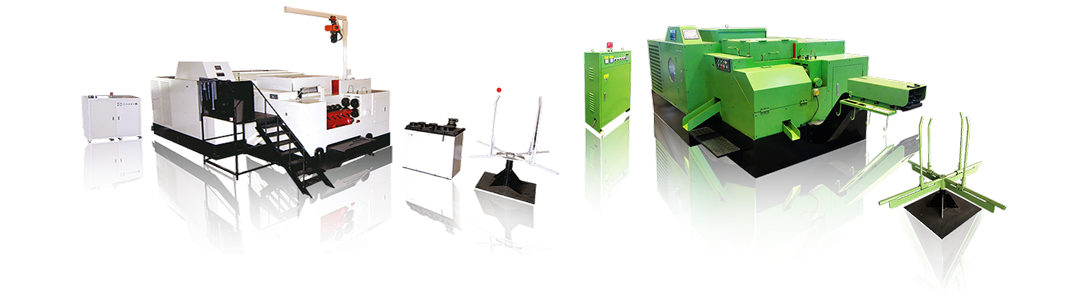

Nut Former Machines
6-station nut forming machines from Taiwan for high-volume, precision nut production.
| Make | Model (6 Station) | Product Range | Capacity (Nos./Min) |
|---|---|---|---|
| BIING FENG-TAIWAN | 11B-6S | M2.5-M6 | 350 |
| BIING FENG-TAIWAN | 17B-6S | M8-M10 | 220 |
| BIING FENG-TAIWAN | 24B-6S | M12-M18 | 145 |

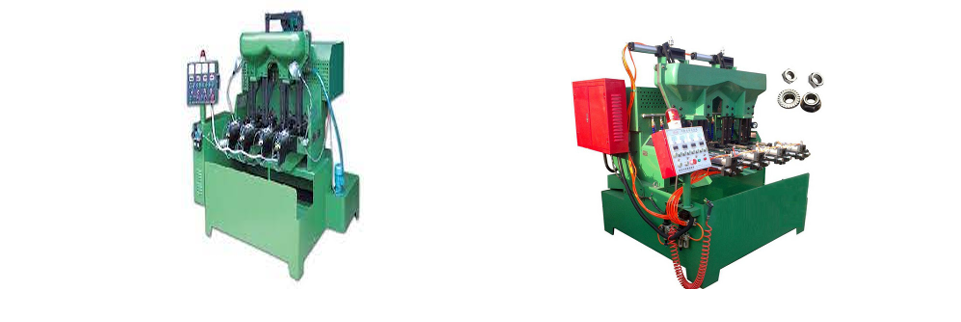

Tapping Machines
Multi-spindle tapping machines for efficient thread cutting in both flange and hex nuts.
| Make | Model | Product Range | Capacity (Nos./Min) |
|---|---|---|---|
| DALJEET ENGINEERING | LDH-M8 | M2.5-M8 | 120-140 (Flange) 160-200 (Hex) |
| LDH-M12 | M10-M14 | 80-100 (Flange) 100-140 (Hex) |
|
| LDH-M18 | M16-M18 | 50-60 (Flange) 70-80 (Hex) |

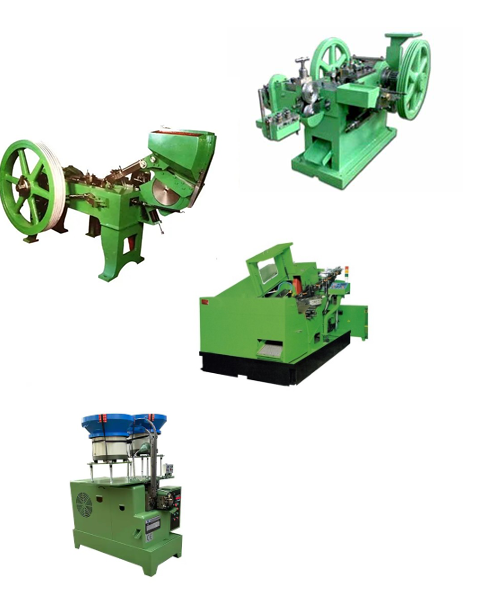

Additional Manufacturing Facilities
Header Equipment
Header machine for manufacturing bolts from size M8 to M12 with precision and reliability.
Trimming Machine
Specialized trimming machine for accurate bolt length finishing from M8 to M12 sizes.

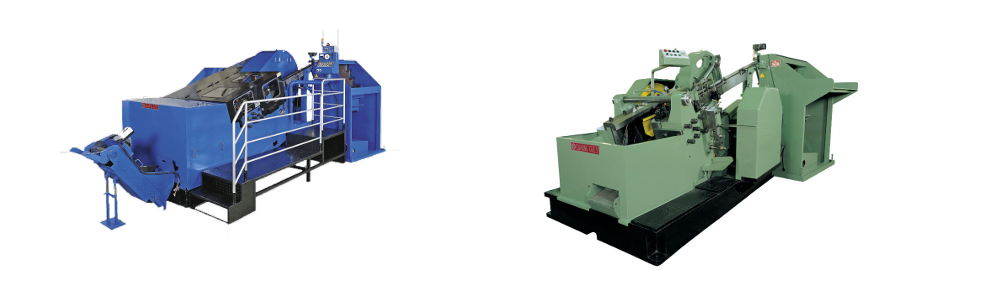

Rolling Machines
2 Circular Rolling Machines and 3 Flat Rolling Machines for manufacturing M5 to M24 bolts.
Nyloc Nut Crimping

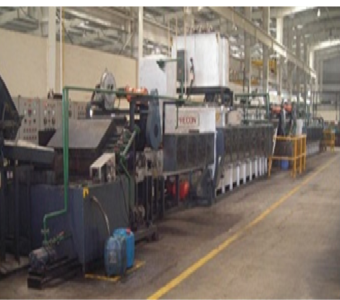

Heat Treatment Facility
Advanced Precon 500 Kgs/Hr Continuous Hardening and Tempering Furnace with complete automation.
Heat Treatment Process
PLC & SCADA Control System
- Store complete loading history
- Real-time heat treatment trending
- Multiple grade cycle viewing
- Automated temperature data printing

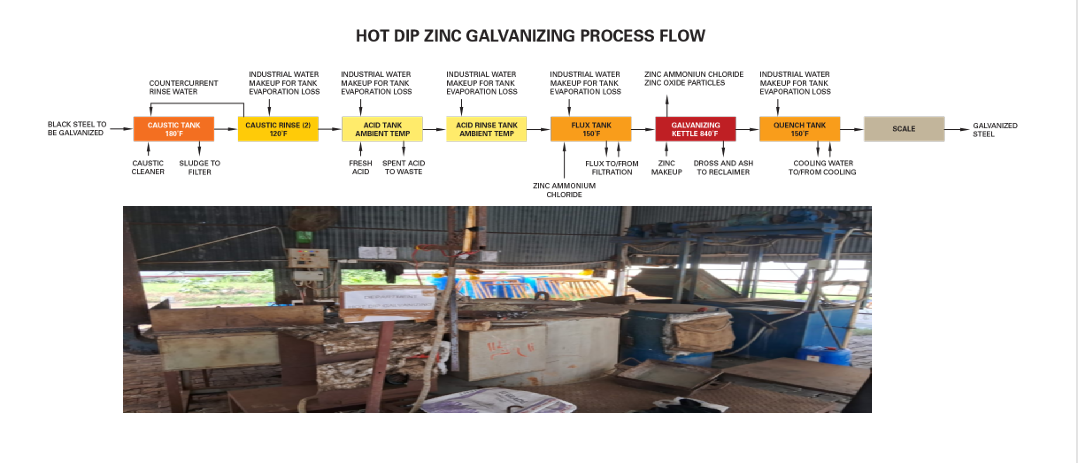

Hot Dip Galvanizing Facility
Complete surface treatment facility with seven-tank cleaning process for superior corrosion protection.
